D13DRJ - Dead Rail Decoder - Retired

Dimensions: 1.30 x 0.640 x .285 inches - 33 x 17 x 7.5mm

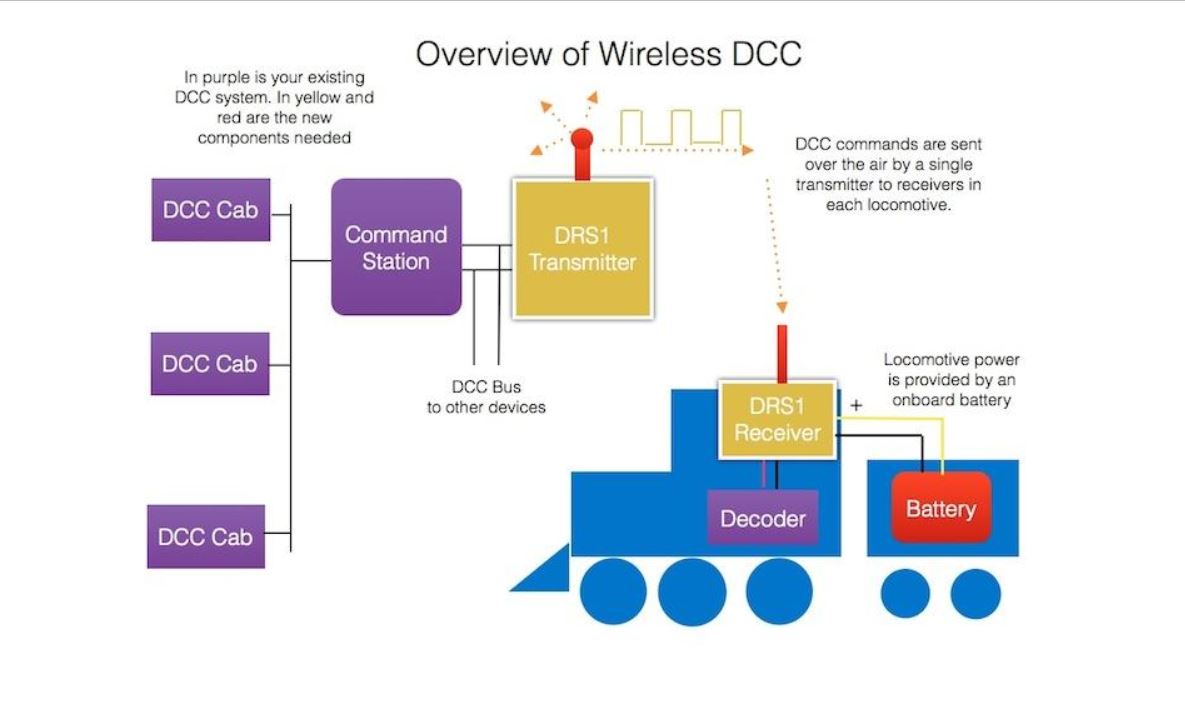

Direct Radio Wireless DCC decoder operating at 916.50 MHZ

Features of this decoder: Built-in radio compatible with the S-Cab by Stanton Wireless, Equipped with NMRA 9 pin DCC ‘Quick Plug’  Torque Compensation for ultra smooth low speed performance.  Motor rating 1.3 Amp continuous, 2 Amp peak (stall)  All four function outputs have lighting effects generators.  Select from 15 different lighting effects.  Full support for LED lighting.

 The D13DRJ is designed to be used with Stanton Wireless A.K.A. S-Cab since he uses the exact same wireless chip and frequency we use 916.50 MHZ. Tam Valley claimed that even though the receiver they use is 916.37 that it would work fine.  We had to find someone with a CVP T5000 for compatibility testing. Originally we relied on CVP's claim of compatibility but have found that it is not true. We have changed our website and documentation to reflect this.
