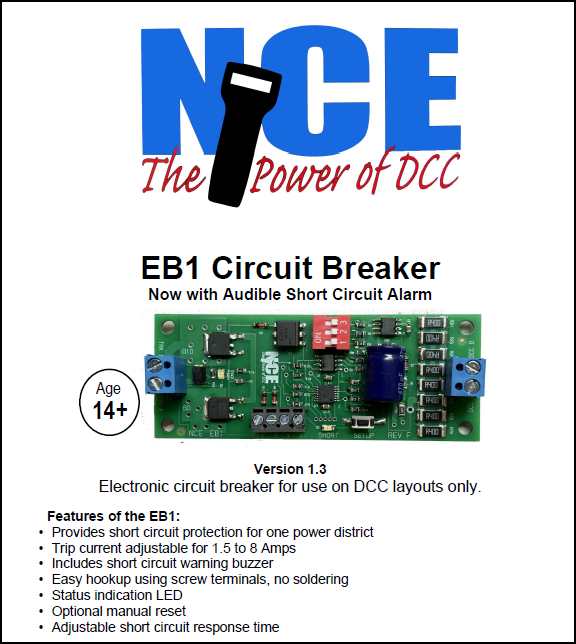

EB1v1_3 with buzzer



If the buzzer is on all the time, swap the buzzer wires; they may be reversed.
The green LED is the power IN status.
The red LED is the track OUT status.
DCC A and B are the INPUT from your booster
TRK A and B are the TRACK output
